91-00 Chevy/GMC 3500 Rear Kit

Related products

  • 01-10 Silverado/Sierra HD Rear Kit
    Select options This product has multiple variants. The options may be chosen on the product page

    01-10 Silverado/Sierra HD Rear Kit

    SKU: N/A
    Price range: $1,999.00 through $3,799.00

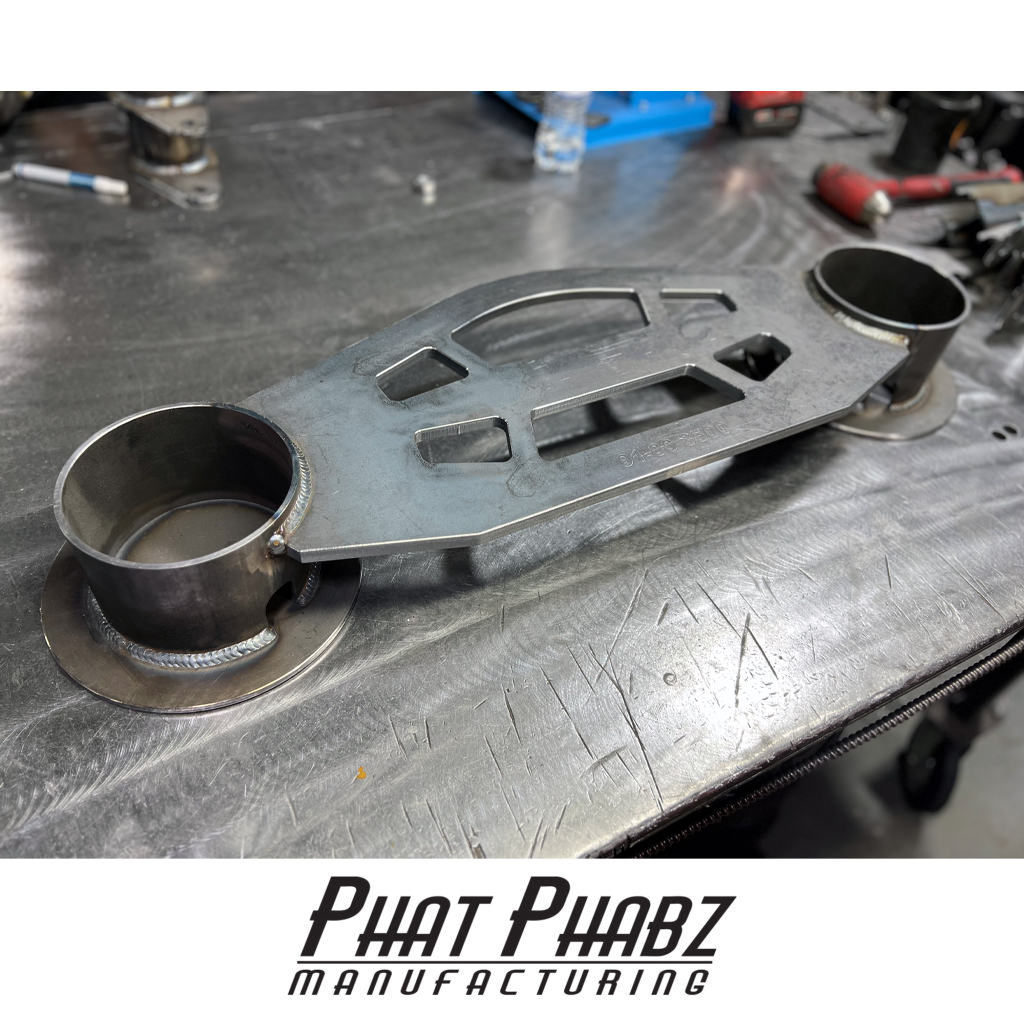

    Starting at only $1,999! Rear HD Kit Includes: -4 link bars. -Front crossmember with driveshaft loop and 4-Link brackets (3/8" material) -Locating frame plates (bolts onto factory spring hanger to locate, welds in after locating) -Axle brackets (3/8" material) -8.5" C-notch -Lower bag circle plates (9" diameter) -Lower shock mounts. -All additional hardware included. (Rear shocks and upper shock mounts are NOT included.) (Kit will only fit 8ft, long bed frames.) Upgrade Options: -Watts Link additional $399 -Rear Sway Bar additional $750 -Bridge Kit additional $600 (Includes the upper bag mounts and support between. You will need to fab mounts to attach to the notches. Does not include gooseneck.)
    Select options This product has multiple variants. The options may be chosen on the product page
  • 88-98 Chevy/GMC 1500 Rear Kit
    Select options This product has multiple variants. The options may be chosen on the product page

    88-98 Chevy/GMC 1500 Rear Kit

    SKU: N/A
    Price range: $2,180.00 through $3,030.00
    88-98 Chevy/GMC 1500 Rear Kit Kit Includes: -4 link bars -Front Crossmember with 4-Link brackets already welded. Also includes locater plates for the crossmember that utilize the factory hanger mounting holes. -Axle brackets -8.5" C-notch -Lower bag circle plates -Upper and Lower shock mounts. (Upper Mount Shock Studs will need to be located and welded) -Diagonal Bar w/Chromoly Heims -Both Shocks Included (Lifetime Warranty) -Upper Bag Mounts -All additional hardware included. -Airbags are NOT included. You can add a fuel cell that relocates behind the rear differential. The fuel cell can use the factory style fuel pump or factory LS based fuel pump. Please allow 2-4 weeks build time for this kit. Designed to lay a 33" tall tire.
    Select options This product has multiple variants. The options may be chosen on the product page
  • 7/8" Weld-On Stud Kit
    Add to cart

    7/8″ Weld-On Stud Kit

    ,
    $40.00
    This kit is CNC machined to fit 1.50x.188w DOM tubing.
    7/8-11 RH stud with a coped end designed to fit onto 2" DOM.
    3" overall length from peak of coped surface to end of threads. 2.5" thread length.
    Kit comes with (1) 7/8-11 RH Weld-On Stud, (1) Weld In Bung, and (1) RH Jam Nut.
    Add to cart
  • Universal Truck Parallel 4-Link
    Select options This product has multiple variants. The options may be chosen on the product page

    Universal Truck Parallel 4-Link

    SKU: N/A
    Price range: $595.00 through $910.00
    4-Link Includes: -24" Center to center link bars. -Front brackets fit to 2x3 stock tube. -Axle size options available: 2.75", 3.00", 3.25", and 3.50" axle. -Options include a Diagonal bar or Watts Link with heims and hardware. -All additional hardware included.
    Select options This product has multiple variants. The options may be chosen on the product page
