Name: 1961-1966 F100 CoilOver Chassis
SKU: 9450
Availability: InStock

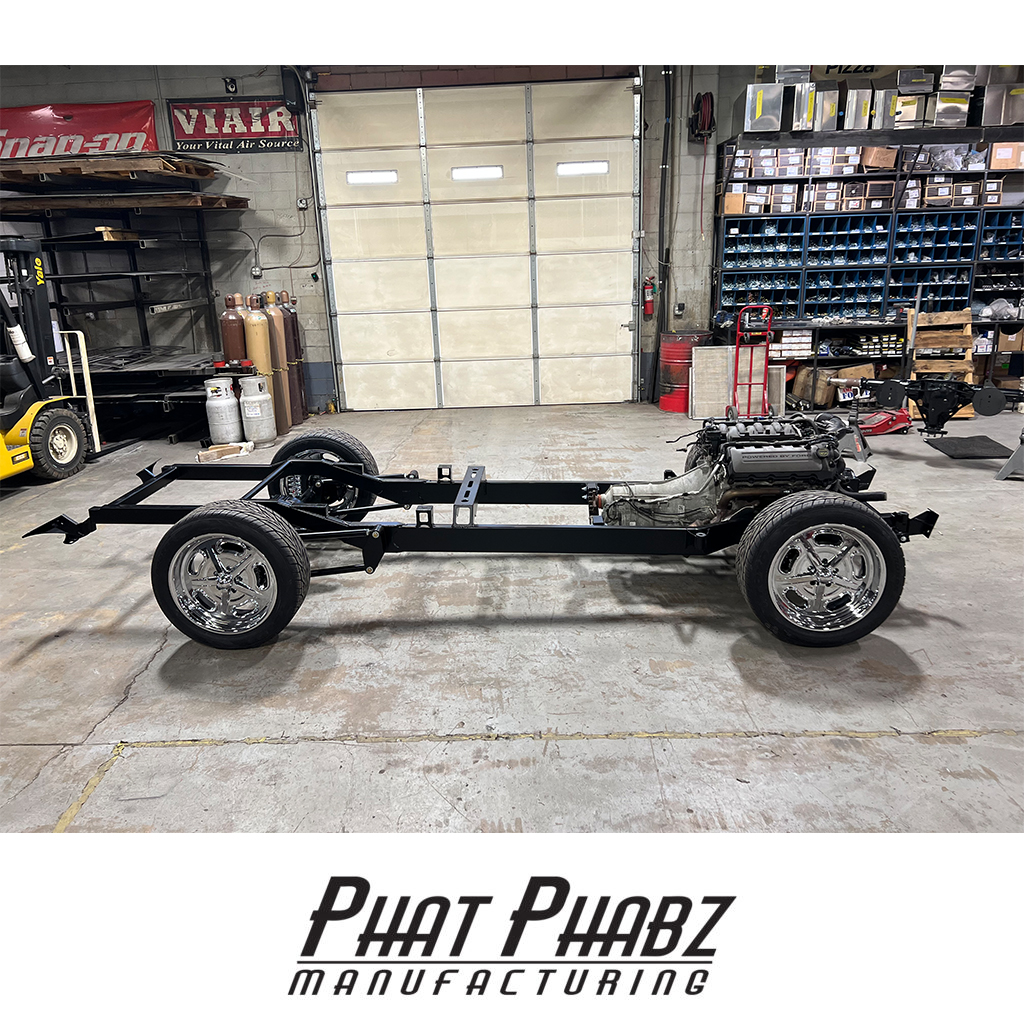

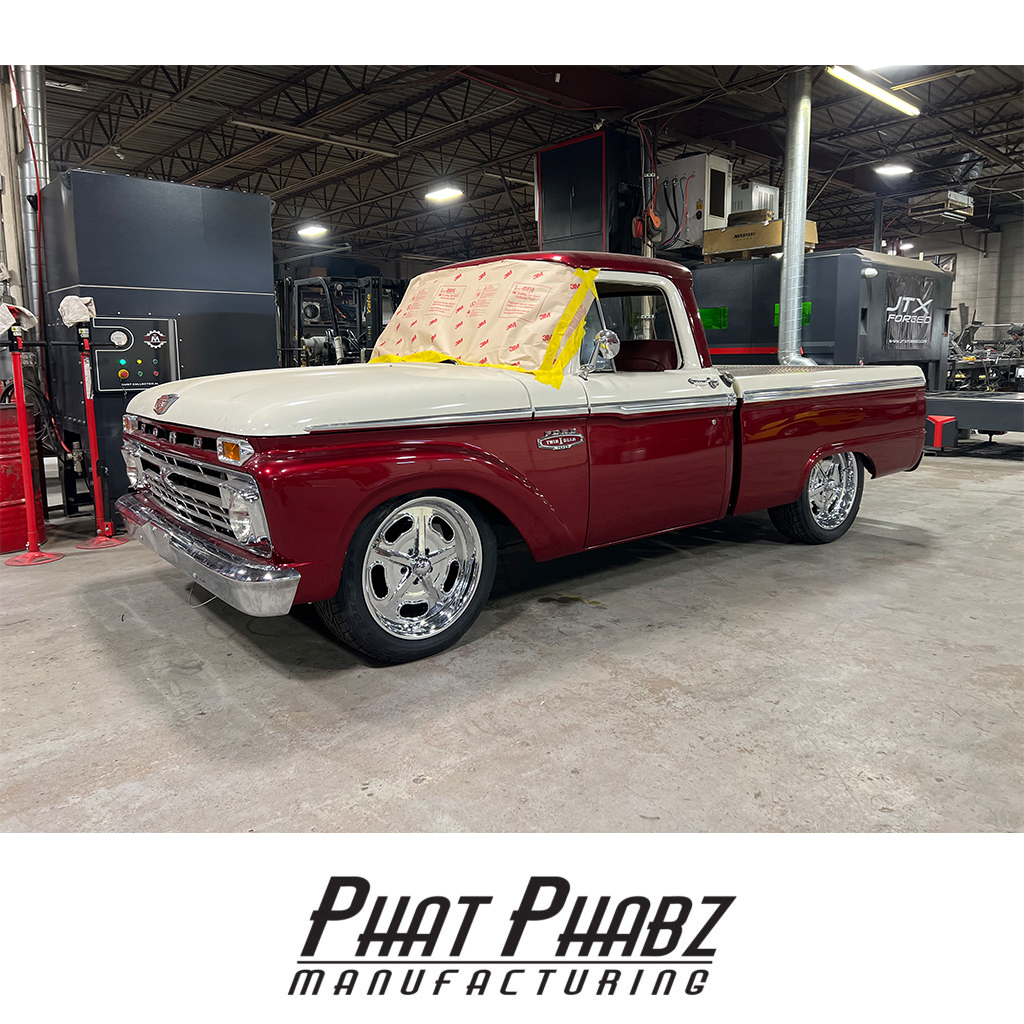

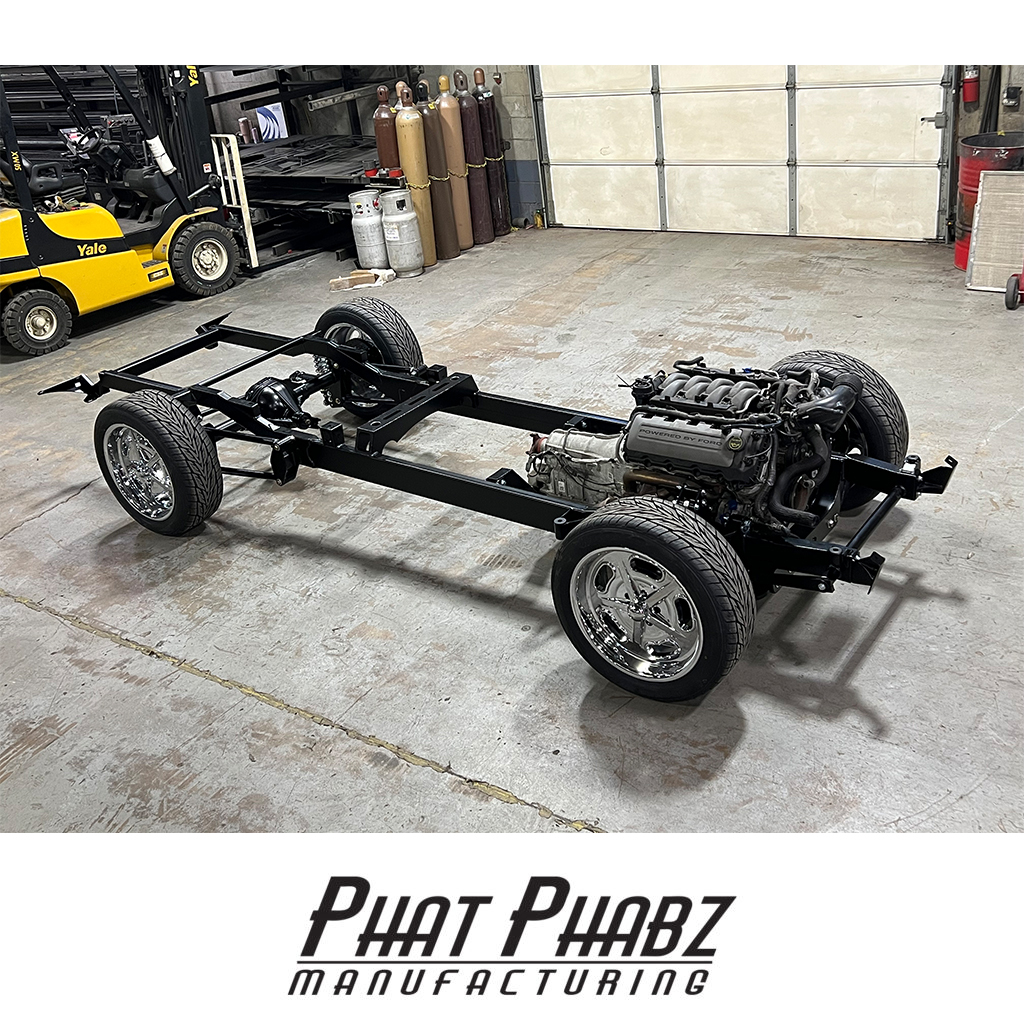

1961-1966 F100 CoilOver Chassis

Available for 61-66 F100s.

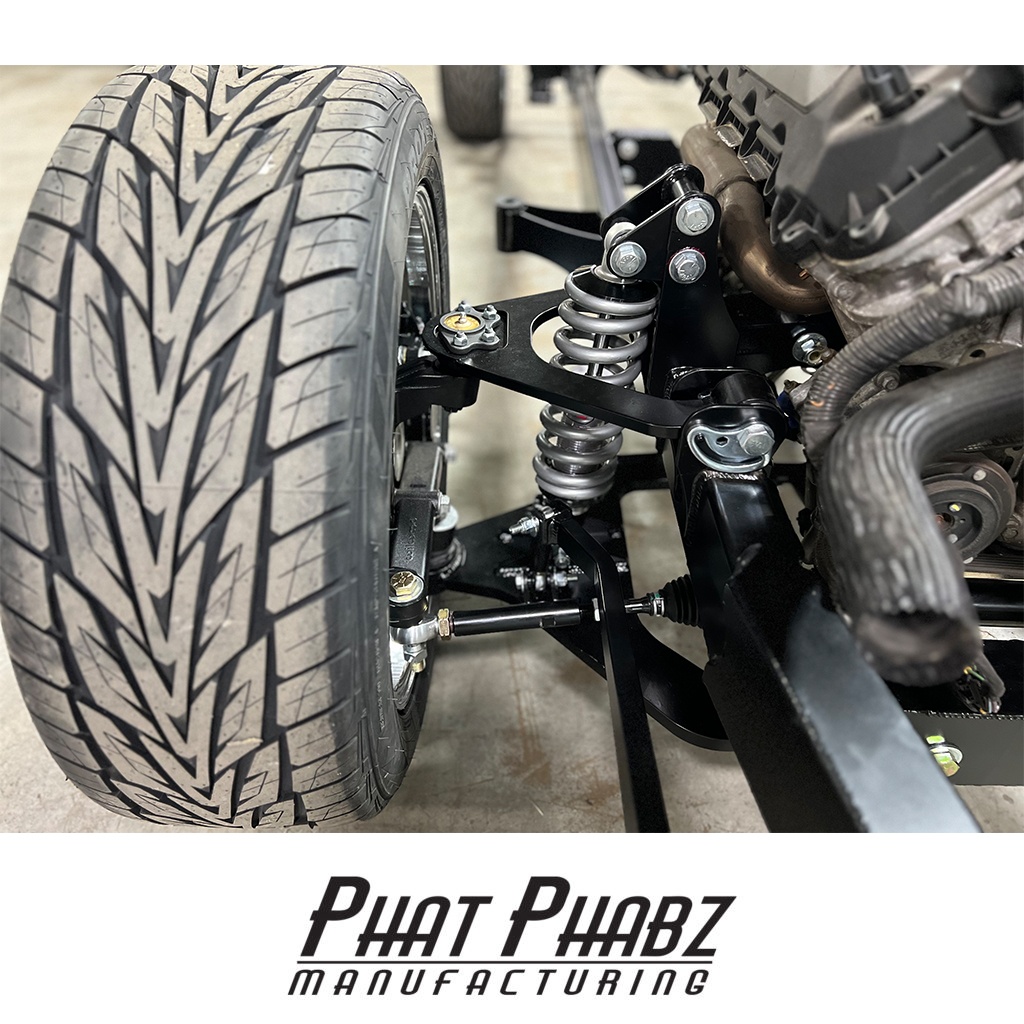

-Our front setups include lock-to-lock turning radius without rubbing the frame rails.
-The “bodydrop” chassis suspension height can be setup to be as low as 5″ off the ground.
-A front sway bar(optional) adds to the improved drive-ability of a lowered truck.

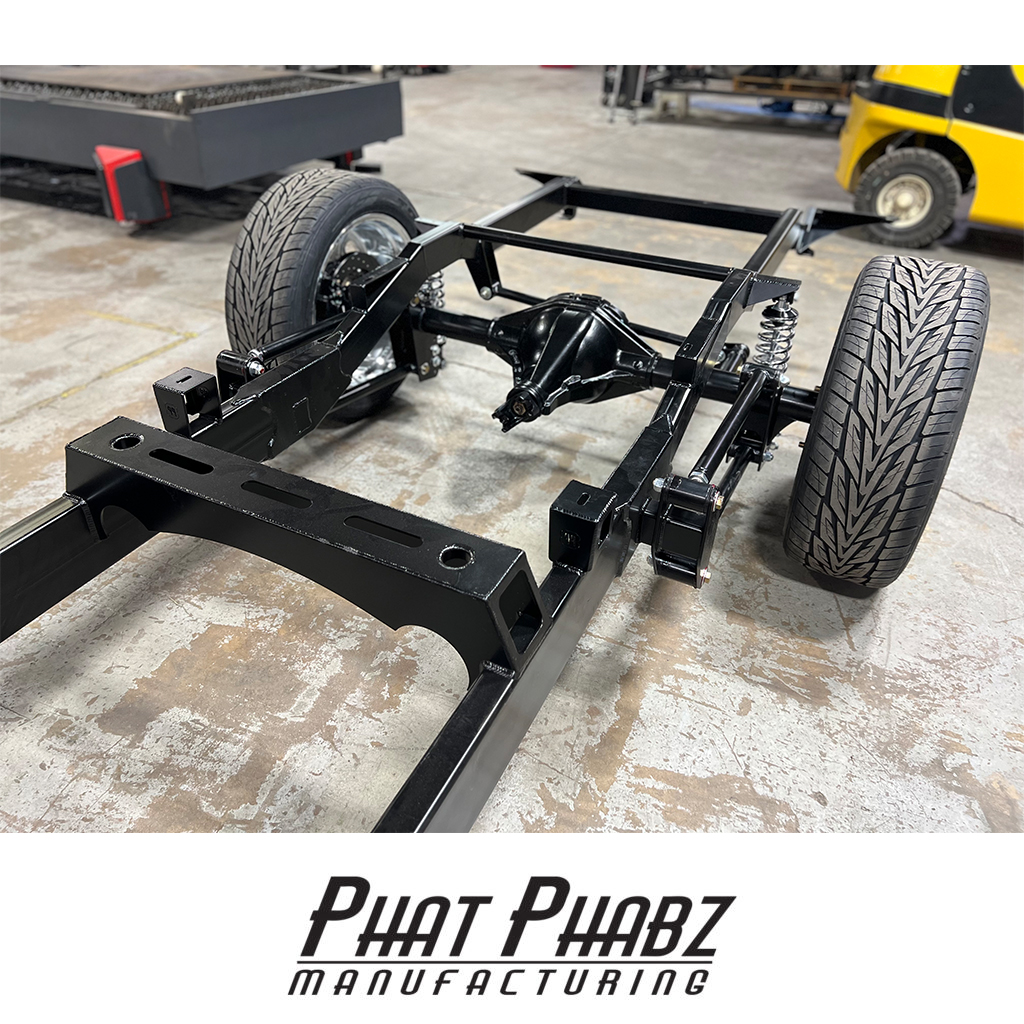

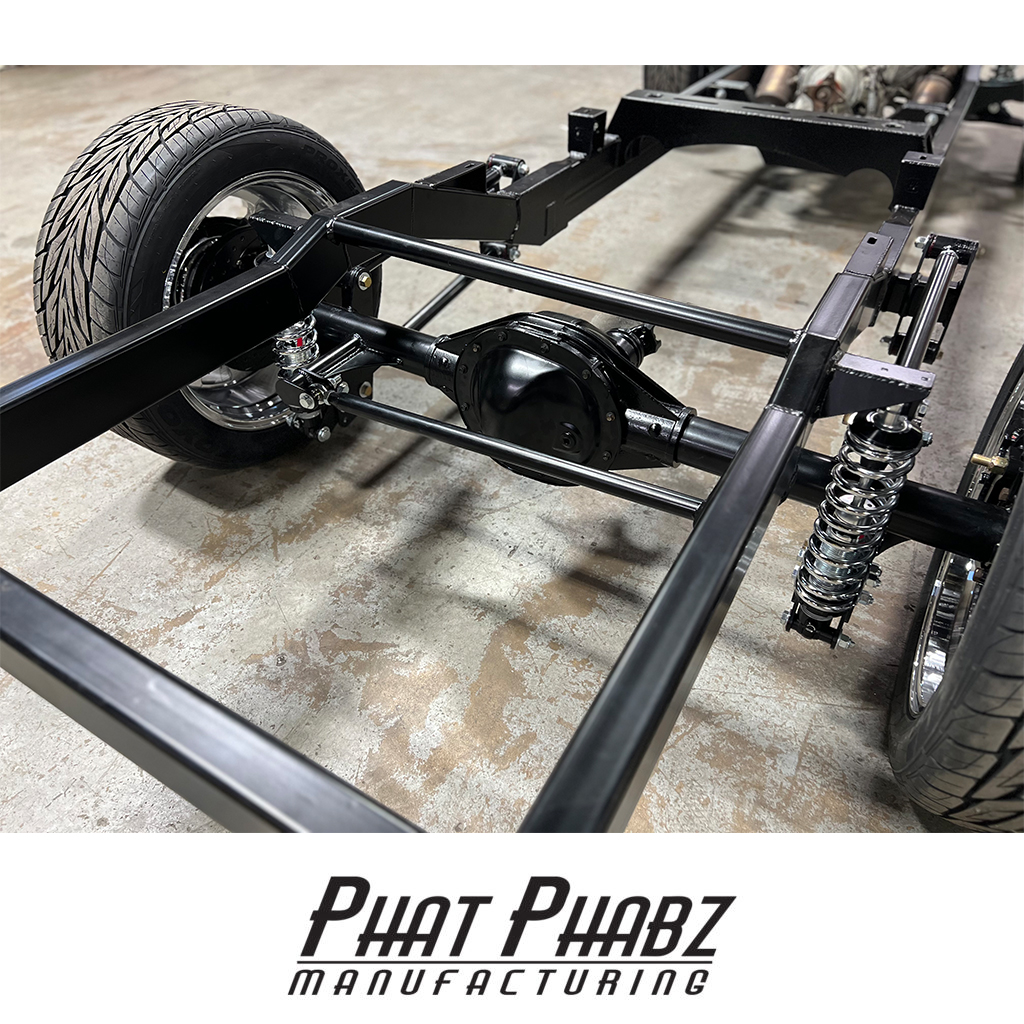

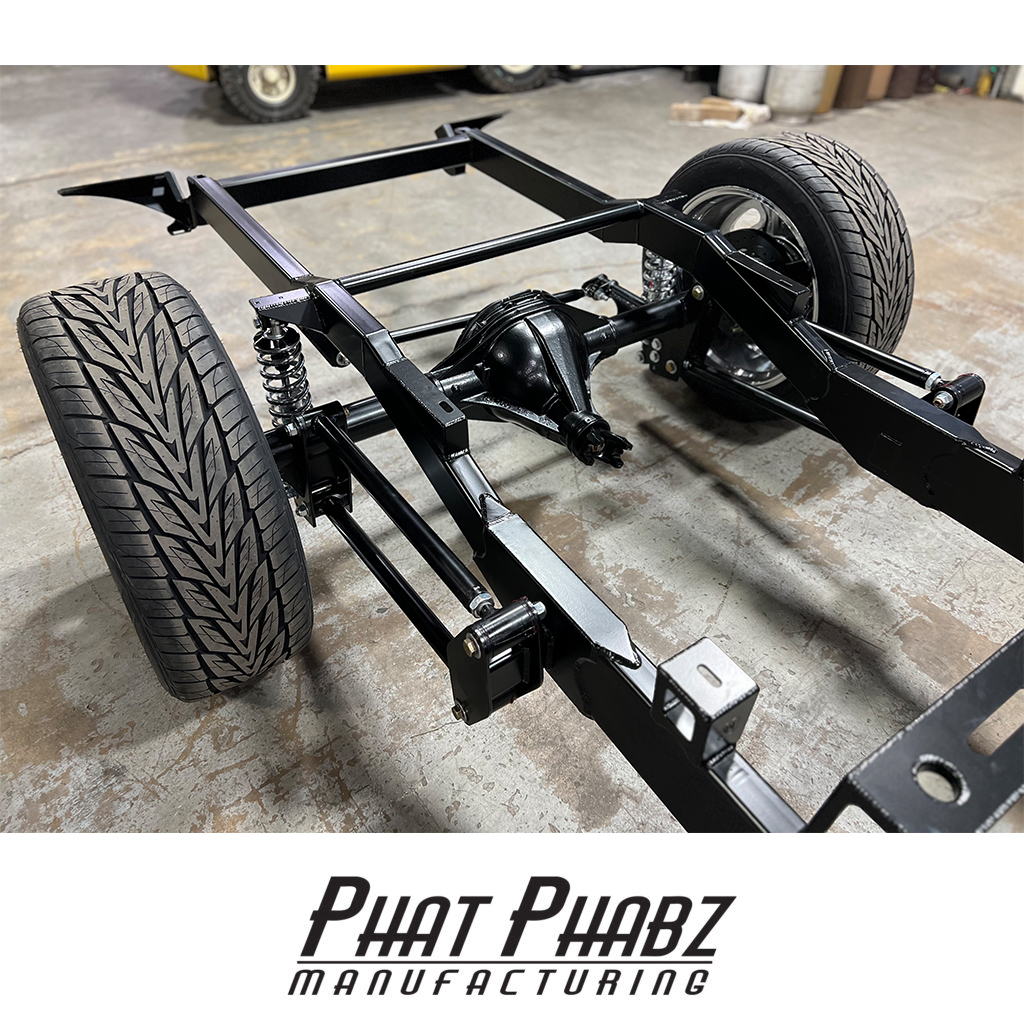

-The rear four link with QA1 Coilover suspension creates a stable, yet smooth ride out back.
-A lowered rack and pinion mounting location in conjunction with lowered motor mounts keep steering shaft from binding as well as minimal sheet-metal modifications to your cab floor.

(Normally 4-6 week build time after ordering.)

$12,900.00 – Each BASE chassis includes:
– Bumper to bumper 2×4 .188wall rails
– Upper and lower control arms
– Wilwood Spindles (5×5 or 5×4.75 lug pattern)
– Balljoints(lifetime warranty)
– Chromoly heim steering kit
– Rack and pinion
– Motor/Transmission mounts
– Transmission crossmember
– Carrier bearing crossmember(if necessary)
– 4 link with diagonal track bar
– (2) QA1 Double Adjustable Coilovers (front)
– (2) QA1 Single Adjustable Coilovers (rear)
– Cab, rear bed, and core support mounts
– Front and rear bumper mounts

OPTIONAL equipment includes:

$800ea – Front sway bar

$850 – 23 gallon aluminum fuel cell

$400 – Rear axle installation (must be shipped to Phat Phabz)

$850 – Rear axle narrowing (Moser axles replace the stock axles)

$4,400 – Wilwood 14″ rotor big brake kits

$850 – Wilwood Spindles
